Electrical Specification

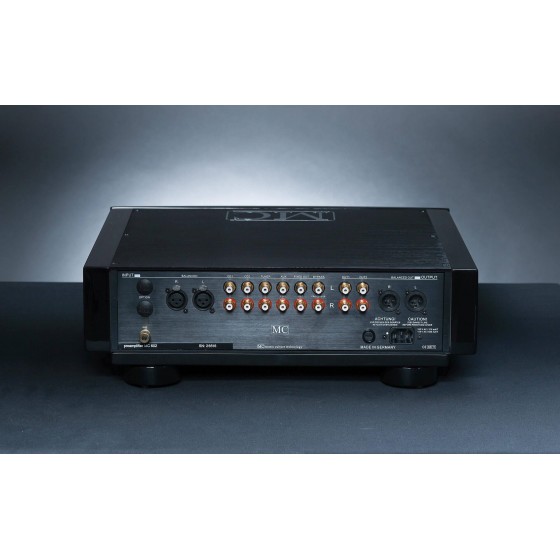

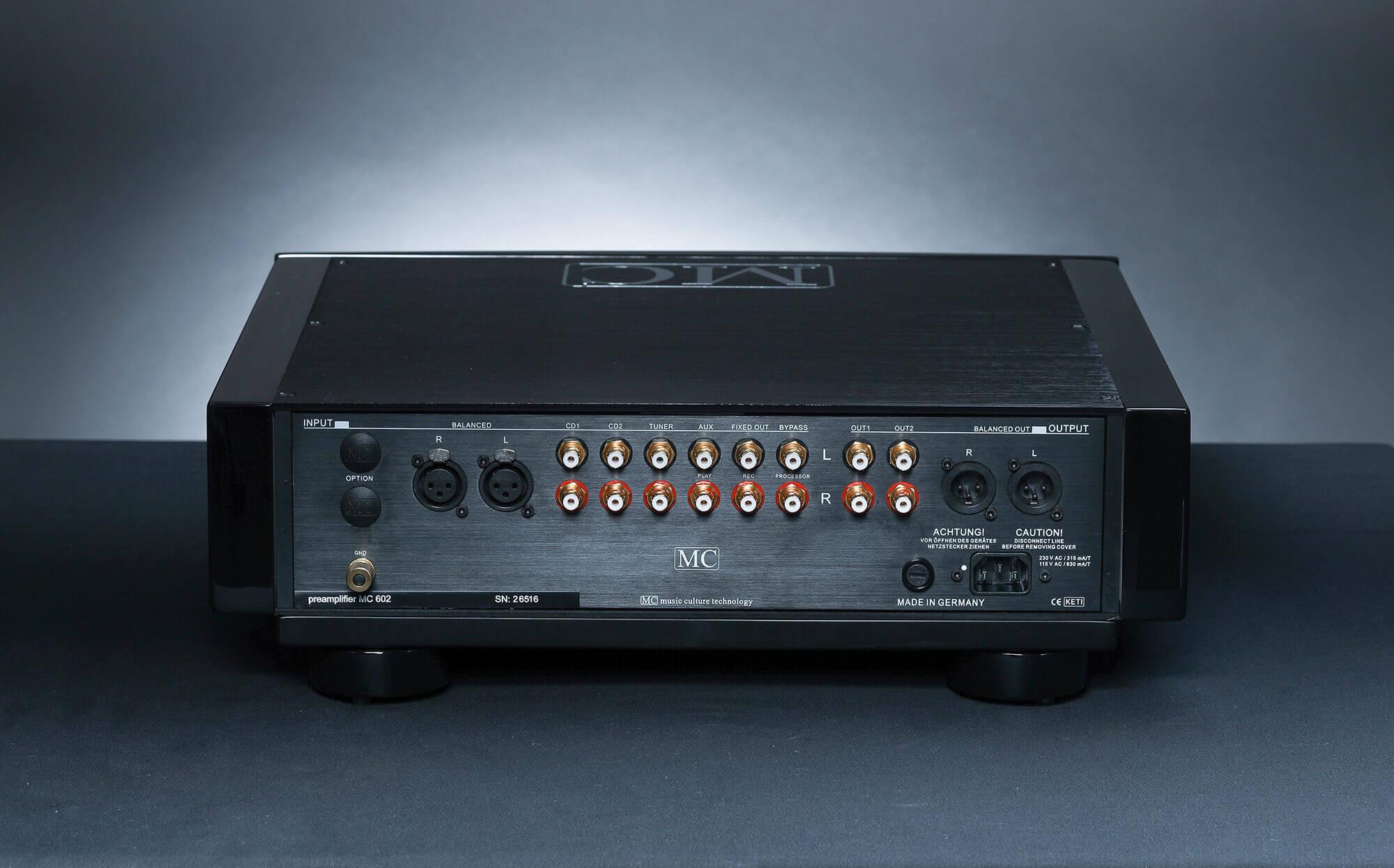

Inputs
7 inputs, (XLR*1 pair, CD *2, high level/tape *2, Processor *1, Option*2)
Output
3 Fixed Out; XLR*1 pair, RCA* 2 pairs
Technical Specifications
Frequency Response
CD: DC – 1.0 MHz
High Level: DC – 600kHz
Output level
1Veff – 10Veff max
Output Impedance
100 Ohms
Noise Distortion
<0.0005% @1 kHz, 2V
Input Sensitivity
315mV
Input Impedance
XLR: 10k Ohms
RCA: 10k Ohms
High level: 50k Ohms
Processor: 10k Ohms
S/N
CD: 110/120 db, 1V/25 Ohms
High Level: 108/112 db, 1V/25 Ohms
Maximum loading Level
High level: 11Veff
Channel Separation
90db
Power Consumption
Maximun: 25VA max.
Line Voltage (factory setting)
230 / 115 Vac, 50 / 60 Hz
Weight
14.5kg
Dimensions (WxHxD)
450 x 150 x 425 mm (Feet Included)
