後級擴大機
MC 802
MC 802,採用木及金屬構成複合式機體。全平衡式放大線路設計,以最短傳輸路徑減低干擾及信息流失,即使大音量播放下,保持豐富音質及極寧靜的背景。
Features highlight
1. Power Supply

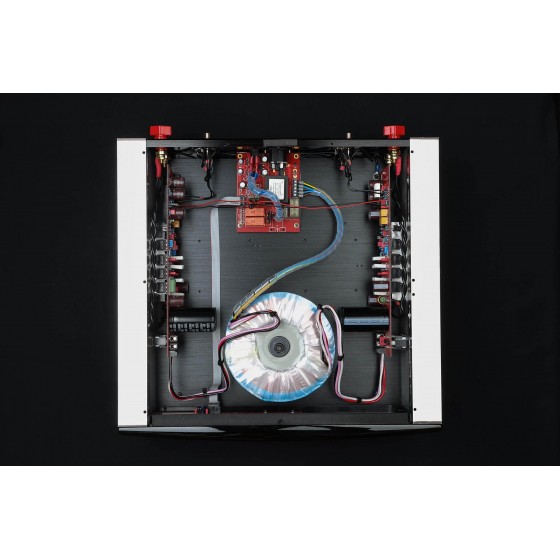

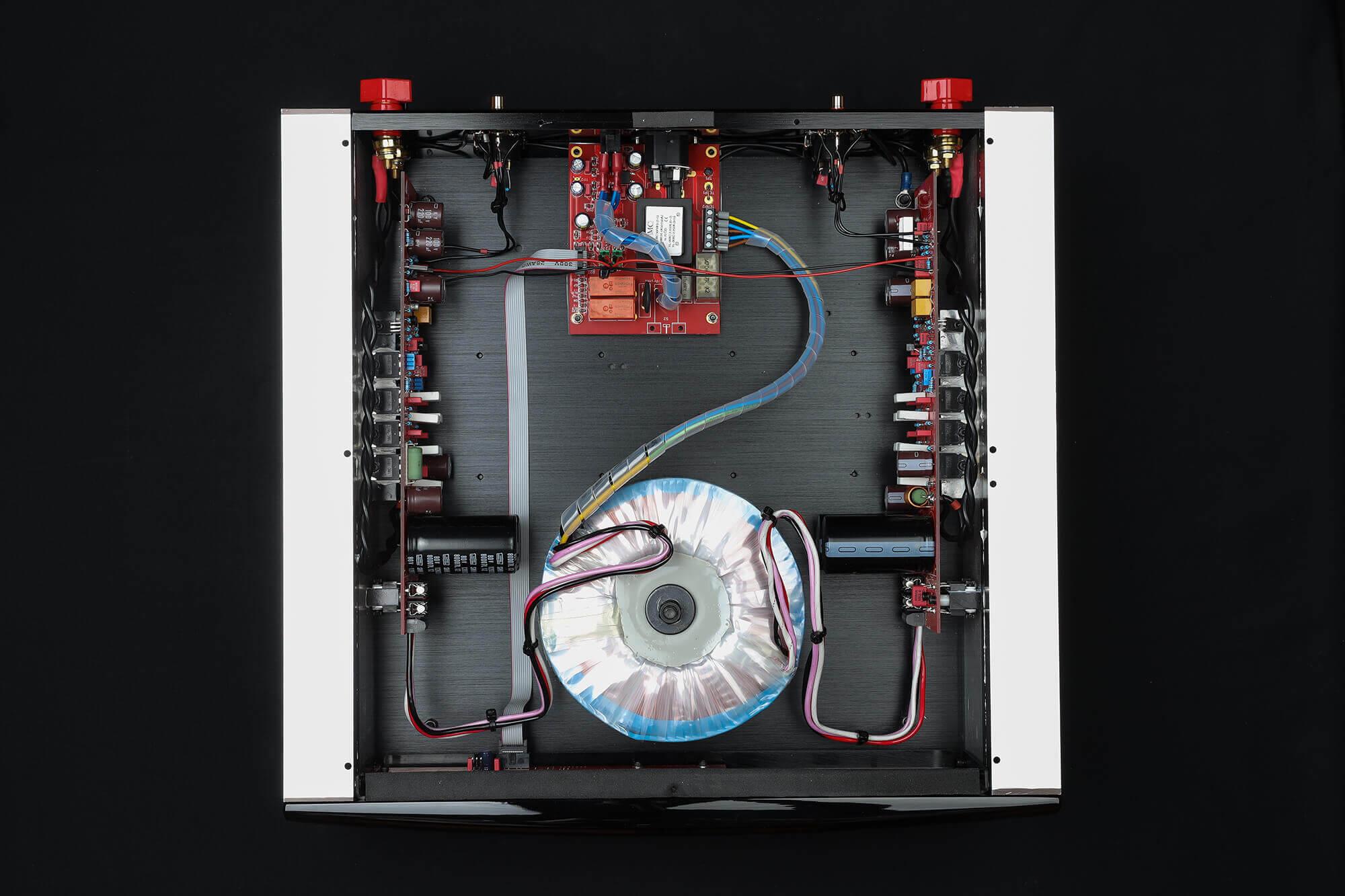

- Germany Custom Made High power 800W Toroidal power transformer;
- Bigger Capacities for both audio channels;
2. Amplifier Stage
- Gold-plated high-quality PCB for all signals and audio circuit;
- Lowest distortion op-amp;
- MC custom Made and selected Power Transistors;
- Audiophile grade and long-life audio use capacitors;
- Mono crystalline copper (OFC/OCC) conductors for all inputs and outputs;
- OCC terminals for no losses output connection;
- Shortest signal path to the outputs;
- Professional wire dressing arrangement for high end sound application;
- Professional wire dressing method for noise elimination;
3. Construction
- Solid Metal and resonance resistance material built;
- Resonance trap system for the chassis base;
- MC unique resonance trap stand design for the support;
- MC Heat Media System;
- Fully shielded protection;
- Curve shape panel for better acoustics performance;
4. Cosmetic
- High Quality satin black Elegant curve panel design;
- Professional ID design for the shape and color scheme;
- Japanese high-quality LCD display
付款方式:
實體ATM轉帳
送貨方式:
宅配 - 免運費
優惠價:234000
數量:



產品詳細介紹
Specifications
Peak Pulse Power
1000W @ Max Power
Power output
280W RMS @ 4 Ohms
180W RMS @ 8 Ohms
Input Impedance
XLR 10k Ohms, RCA 10k Ohms
Input Sensitivity
2.5V, 200 W, 8 Ohms
Output Voltage Max
85V peak
Output Current Max
25A peak
Frequency Response
DC–130kHz
THD
<0.005%
Damping Factor
300 (4 Ohms)
S/N
Weighted 120db
Unweighted 130db
Power Consumption
Sleep Mode 4.5VA
Maximum 830VA
Power Supply
Germany Custom Made Toroidal Power Transformer,
Two-guard shielding,
Line Voltage (factory setting)
230 / 115 Vac, 50 / 60 Hz
Weight
20kg
Dimensions (WxHxD)
450 x 165 x 425 mm (Feet Included)
