| 輸出電壓 |
220 – 240 V (50 – 60 Hz)
100 – 120 V (50 – 60 Hz) |
| 消耗功率 |
＜0.5 W Standby
idle 150 W
max 1600 W |
| 輸出 |
2 pairs Cu-terminal,
gold plated |
| 增益 |
– 31 dB bis + 42 dB |
| 輸出功率 |
125 W @ 8 Ω
250 W @ 4 Ω
500 W @ 2 Ω |
| 脈衝功率 |
＞5,000 W |
| 頻率響應 (– 3 dB) |
0 – 800 kHz |
| 總諧波失真 |
＜0.001% at 50 W @ 4 Ω
(20 Hz – 20 kHz) |
| IM distortions |
＜0.005 % SMPTE
＜0.0006 CCIR |
| 訊噪比 |
＞120 dB (5 W @ 1 kHz) |
| 聲道分離度 |
＞110 dB @ 1 kHz |
| 阻尼因子 |
＞10 000 |
| 最大輸出電流 |
45 A (limited) |

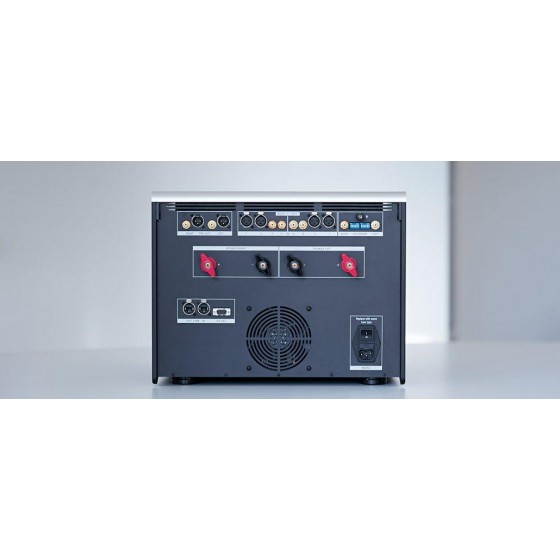

| 輸入規格 |
2 × balanced (XLR)
2 × unbalanced (RCA)
1 × Phono (RCA) |
| 輸入阻抗 |
3 kΩ balanced (XLR)
3 kΩ unbalanced (RCA)
Phono configurable |
| 尺寸 |
442 × 350 × 448 mm
(W × H × D) |
| 重量 |
approx. 40 kg |
| LINK (remote turn-on) |
12 V control signal |
