511 Stereo/Dual |
511 Mono |
| 輸入電壓 |
100 – 240 V (50 – 60 Hz) |
100 – 240 V (50 – 60 Hz) |
| 消耗功率 |
＜0.5 W standby
idle 100 W
max 1600 W |
＜0.5 W standby
idle 200 W
max 2000 W |
| 輸出端子 |
2 pairs Cu-terminal,
gold plated |
2 pairs Cu-terminal,
gold plated |
| 增益 |
+ 26 dB |
+ 32 dB |
| 輸出功率 |
2 × 150 W @ 8 Ω
2 × 300 W @ 4 Ω
2 × 600 W @ 2 Ω |
600 W @ 8 Ω
1200 W @ 4 Ω
2000 W @ 2 Ω |
| 脈衝 |
＞2 × 2000 W |
＞4500 W |
| 頻率響應 (– 3 dB) |
0 – 800 kHz |
0 – 1.6 MHz |
| 總諧波失真 |
＜0.001% at 50 W @ 4 Ω
(20 Hz – 20 kHz) |
＜0.001% at 200 W @ 4 Ω
(20 Hz – 20 kHz) |
| IM失真率 |
＜0.005 % SMPTE
＜0.0006 CCIR |
＜0.005 % SMPTE
＜0.0006 CCIR |
| 訊噪比 |
108 dB (5 W @ 1 kHz) |
108 dB (5 W @ 1 kHz) |
| 聲道分離度 |
＞120 dB @ 1 kHz |
|
| 阻尼係數 |
＞10,000 |
＞5,000 |
| 最大輸出電流 |
45 A (limited) |
45 A (limited) |

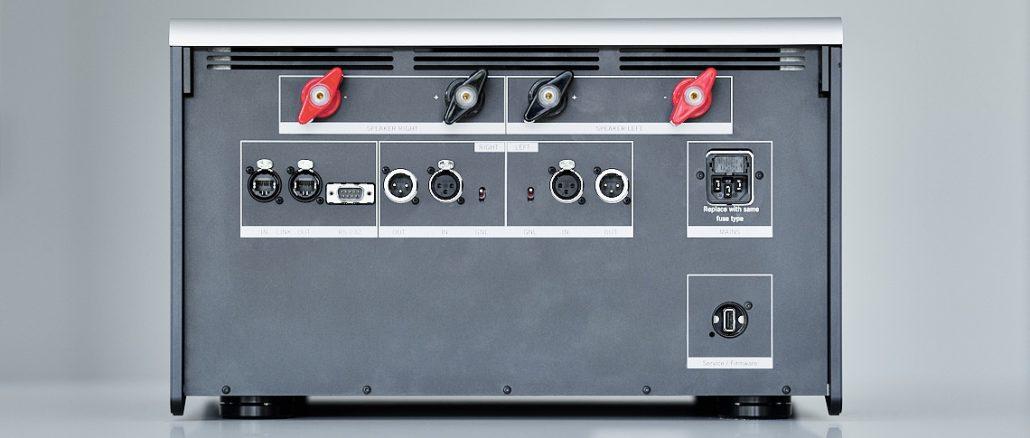

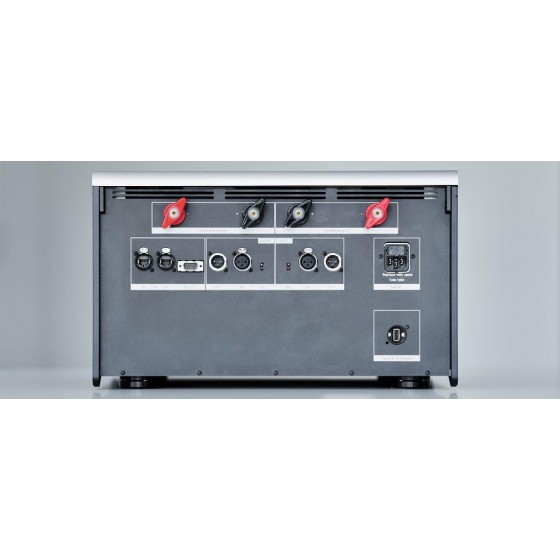

| 輸入端子 |
1 × balanced (XLR) |
1 × balanced (XLR) |
| 輸入阻抗 |
2 kΩ balanced (XLR) |
2 kΩ balanced (XLR) |
| 尺寸 |
442 × 270 × 448 mm (W × H × D) |
442 × 270 × 448 mm (W × H × D) |
| 重量 |
approx. 30 kg |
approx. 30 kg |
| LINK (remote turn-on) |
12 V control signal |
12 V control signal |
