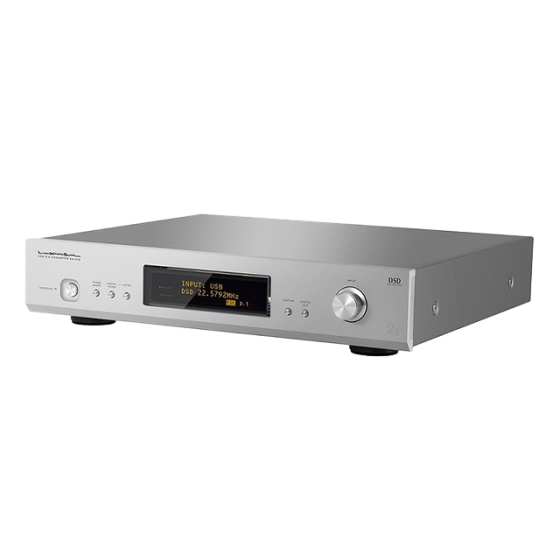

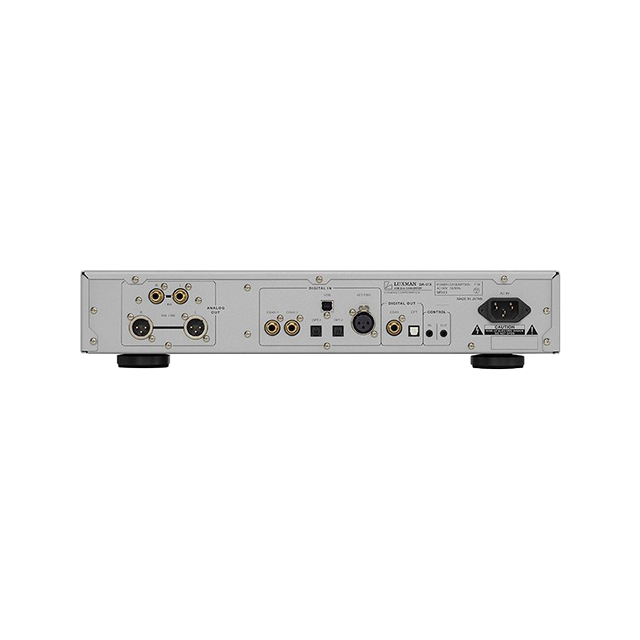

TAIPEI AUDIO - USB D/A 解碼器 DA-07X

Spec

Type	2 channel USB D/A converter
Supported sampling frequency	USB input (PCM) : 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, 352.8 kHz, 384 kHz, 705.6 kHz, 768 kHz (16, 24, 32-bit) USB input (DSD) : 2.8 MHz, 5.6 MHz, 11.2 MHz, 22.5 MHz (1-bit) Coaxial / Optical / AES/EBU input : 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz (16, 20, 24-bit)
Analog ouput voltage / impedance	Unbalanced : 2.4 V / 300 Ω, Balanced : 2.4 V / 600 Ω DSD format : 2.3 V
Frequency response	5 Hz to 20 kHz (+0, -0.4 dB), 5 Hz to 47 kHz (+0, -3.0 dB)

Type

2 channel USB D/A converter

Supported sampling frequency

USB input (PCM) : 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, 352.8 kHz, 384 kHz, 705.6 kHz, 768 kHz (16, 24, 32-bit)
USB input (DSD) : 2.8 MHz, 5.6 MHz, 11.2 MHz, 22.5 MHz (1-bit)
Coaxial / Optical / AES/EBU input : 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz (16, 20, 24-bit)

Analog ouput voltage / impedance

Unbalanced : 2.4 V / 300 Ω, Balanced : 2.4 V / 600 Ω
DSD format : 2.3 V

Frequency response

5 Hz to 20 kHz (+0, -0.4 dB), 5 Hz to 47 kHz (+0, -3.0 dB)

Total harmonic distortion	Unbalanced : 0.001 %, Balanced : 0.001 %
S/N ratio (IHF-A)	124 dB
D/A converter	ROHM BD34301EKV (monaural mode) x 2
Power supply	230 V～(50 Hz) / 115 V～ (60 Hz)
Power consumption	21 W
External dimensions	440(W) x 92(H) x 402(D) mm front side knob of 14 mm and rear side terminal of 8 mm included in depth
Net weight	12.8 kg (main unit)
Accessories	Power cable

Total harmonic distortion

Unbalanced : 0.001 %, Balanced : 0.001 %

S/N ratio (IHF-A)

124 dB

D/A converter

ROHM BD34301EKV (monaural mode) x 2

Power supply

230 V～(50 Hz) / 115 V～ (60 Hz)

Power consumption

21 W

External dimensions

440(W) x 92(H) x 402(D) mm
front side knob of 14 mm and rear side terminal of 8 mm included in depth
