| 產品尺寸/重量 |
121.5mm (H) x 220mm (W) x 356mm (D) / 7.5kg |

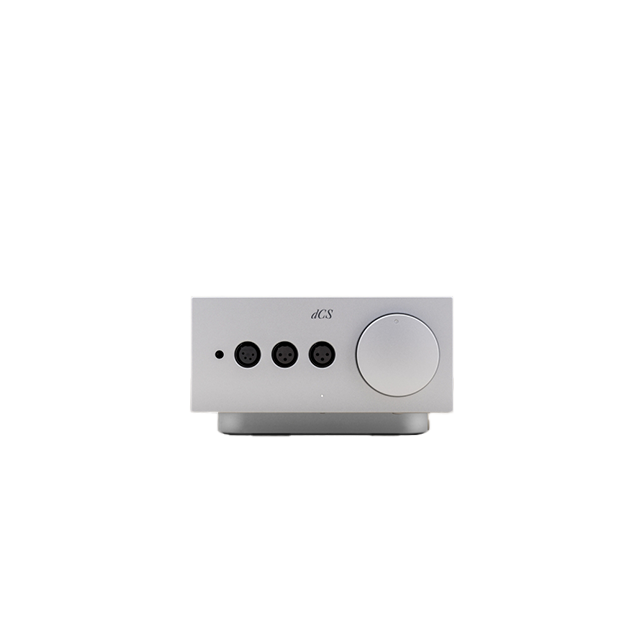

| 耳機輸出介面 |
• 1 x dual 3-pin balanced XLR, right and left channel
• 1 x single 4-pin balanced XLR
• 1 x single 1⁄4” (6.35mm) headphone jack |
| 訊噪比 |
110dB 20Hz-20kHz A-weighted
(referenced to 6V rms balanced input and output) |

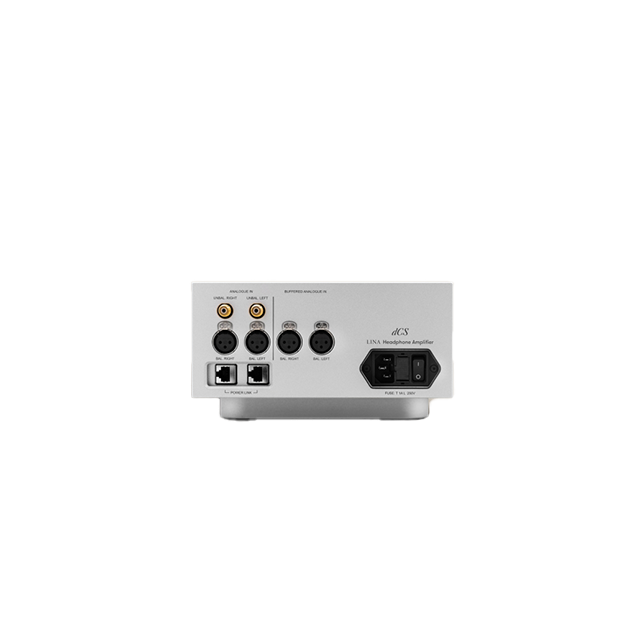

| 類比輸入 |
• 1 x stereo pair unbalanced RCA, input impedance 48kΩ
• 1 x stereo pair unbuffered balanced XLR, input impedance 16kΩ
• 1 x stereo pair buffered balanced XLR, input impedance 96kΩ |
| 總諧波失真 |
under 0.005% @ 1kHz 6V rms balanced output into 30Ω (80kHz bandwidth) |
| 頻率響應 |
1Hz-100kHz Better than +0/-3dB |
| 輸出功率 |
• 2W (30Ω/balance)
• 0.48W (300Ω/balance)
• 1.6W (30Ω/unbalanced)
• 0.2W (300Ω/unbalanced) |
