ROSSINI APEX
Rossini Master Clock主時鐘訊號產生器
規格
種類 Class 1 Master Clock.
時鐘頻率 44.1kHz or 48kHz.
顏色 Silver or Black.
尺寸 444mm/17.5” x 435mm/17.2” x 64mm/2.6”. Allow extra depth for cable connectors.
重量 8.3kg/18.3lbs.
時鐘精度度 Better than +/-1ppm when shipped, over an ambient temperature range of 10°C to 30°C. Typically +/-0.1ppm when shipped and stabilised.

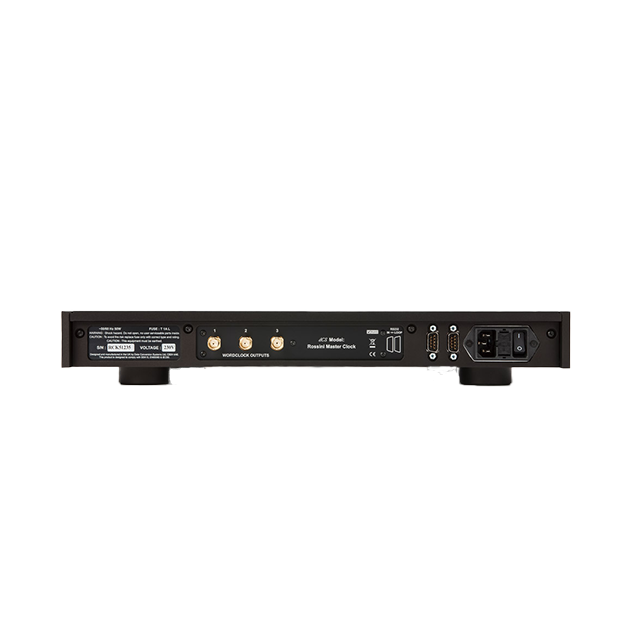

時鐘輸入/出 3 independently buffered outputs on 75Ω BNC connectors. Output 1: fixed at 44.1kHz Output 2: fixed at 48kHz Output 3: 44.1kHz, RS232 controllable.
熱機時間 Typically 1 minute to rated accuracy.
控制方式 RS232 (limited to Power and Clock 3 output frequency).
電源供應 Factory set to either 100, 115/120, 220 or 230/240V AC, 50-60Hz.
消耗功率 3 Watts typical / 4 Watts maximum.
