| 種類 |
Class 1 Master Clock. |
| 時鐘頻率 |
44.1, 48, 88.2, 96, 176.4 or 192kHz. |
| 顏色 |
Silver or Black. |
| 尺寸 |
444mm/17.5” x 435mm/17.2” x 126mm/5.0”. Allow extra depth for cable connectors. |
| 重量 |
13.6kg/29.9lbs. |
| 時鐘精準度 |
Better than +/-1ppm when shipped. Typically +/-0.1ppm when shipped and stabilised. |
| 時鐘輸入/出 |

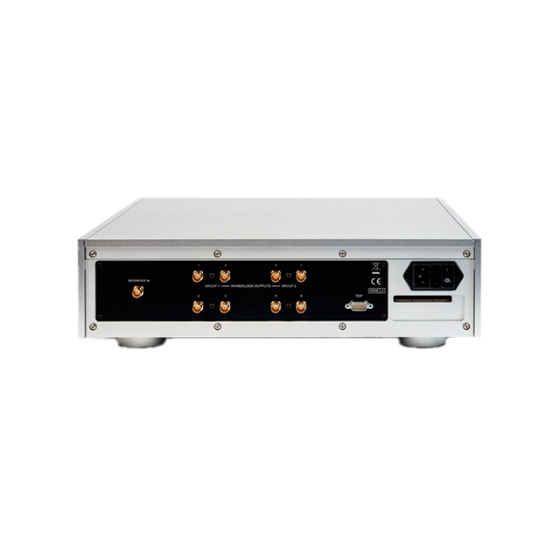

Two groups of 4 independently buffered outputs on 75Ω BNC connectors. Each group may be set to a different clock frequency |
| 數位輸出 |
External Reference Input on 1x 75Ω BNC connector. Accepts either Word Clock or AC coupled signals at 1MHz, 5MHz & 10MHz. Lock range is +/-300ppm. |
| 熱機時間 |
Typically 1 minute to rated accuracy |
| 軟體升級 |
Loaded from CD-R or PC / Upsampler via Reference Input. |
| 操作方式 |
dCS Premium Remote handset is supplied with Vivaldi DAC. RS232 (controlled by a third party device). |
| 電源供應 |
Factory set for 100, 115, 220 or 230V AC, 50-60Hz. |
| 消耗功率 |
10 Watts typical/12 Watts maximum. |
